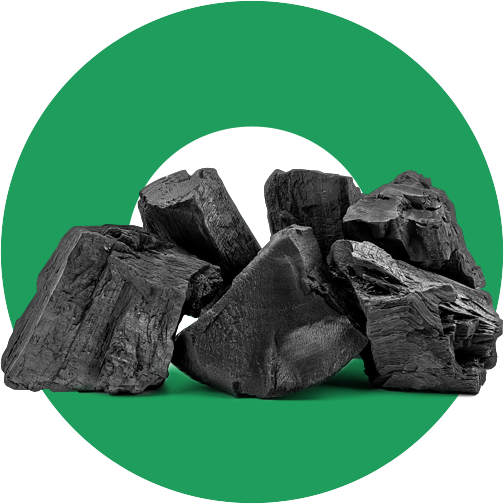

What is biochar?
Biochar is a soil conditioner charcoal that helps plants grow and can be used for agricultural purposes as well as carbon capture and storage, unlike traditional charcoal that is generally used for fuel.
Biochar like ordinary charcoal, is the product of biomass energy raw materials after pyrolysis, and its main component is carbon molecules.
Advantages of biochar
Stimulate Crop Growth
Biochar contains mineral nutrients, which can effectively provide soil phosphorus, potassium, calcium, magnesium, trace elements and other mineral elements, which can be absorbed and utilized by crops and increase the output of agricultural products. The biostimulant component of biochar can also stimulate crop growth, improve stress resistance and product quality.
Improve Fertilizer Use Efficiency
After activation and modification of biochar, the water absorption capacity becomes stronger and the water holding capacity of the soil increases; a large number of negative groups can increase the cation exchange capacity, retain water and fertilizer, and improve the utilization rate of comprehensive fertilizers.
Improve Acidic Soil
The pH value of biochar is naturally weakly alkaline, which can be used to improve acidic soil; absorb toxic and harmful components such as sodium, aluminum, heavy metals, and organic pollutants, and improve and activate soil.
Protect Soil Microbes
Biochar is conducive to soil heat preservation, and its unique pore structure and water and fertilizer adsorption, soil air permeability is good, can create a good habitat for soil microorganisms, and provide protection for soil microorganisms.
What's special about biochar?
The quality of biochar and the field of application depends on the input material. High-quality biochar is used in soil improvement, other biochar can be used as filling material in production, and can also be used as a building material additive in asphalt or concrete. Either way, the waste can be recycled again in a sustainable way, demonstrating a true circular economy.
Soil Additives
Soil Additives
Feed Additive
Feed Additive
Production Of Filling Materials
Production Of Filling Materials
Building Material Additives
Building Material Additives
Negative Emission Technology
Biochar is a sustainable carbon-negative technology. It converts biomass into high-value-added biochar through low-temperature cracking. It stores carbon dioxide in soil organic matter and removes carbon dioxide in the atmosphere to combat climate change caused by greenhouse gases. It is become a viable long-term, high-quality form of carbon removal.

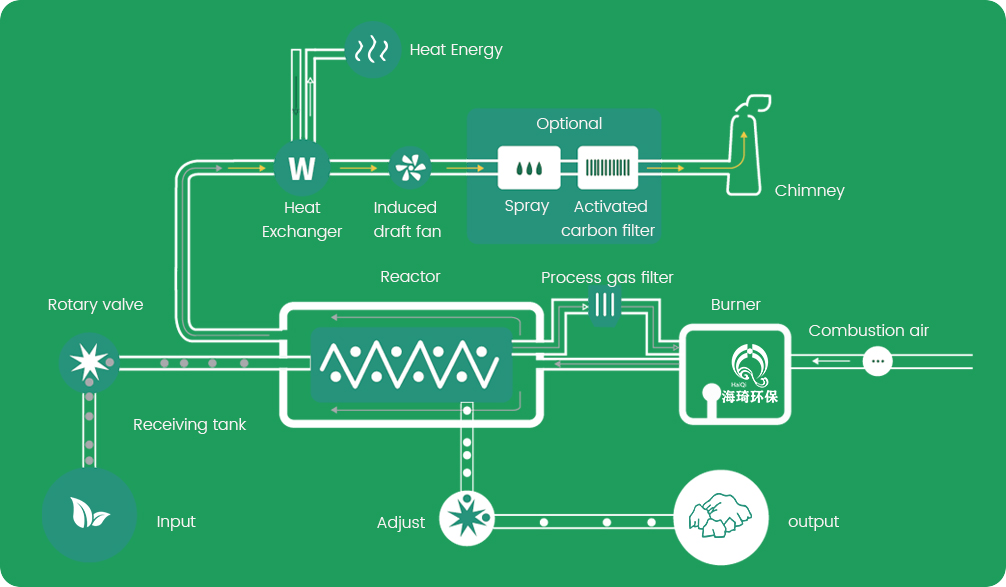

Schematic diagram of multi-production and carbonization system
What raw materials can we recycle?
Raw material requirements: <30mm particle size/75% dry matter content/free flow/10MJ/Kg minimum calorific value
Wood Chip
Root Residue
Peanut Shells
Straw
Nutshell
Chinese Medicine Dregs
Dung
Leaves Waste
Rice Husk
Biomass Pellets
Sludge
Mahogany Pellets
Coconut-Shell
Biomass Briquettes
System introduction

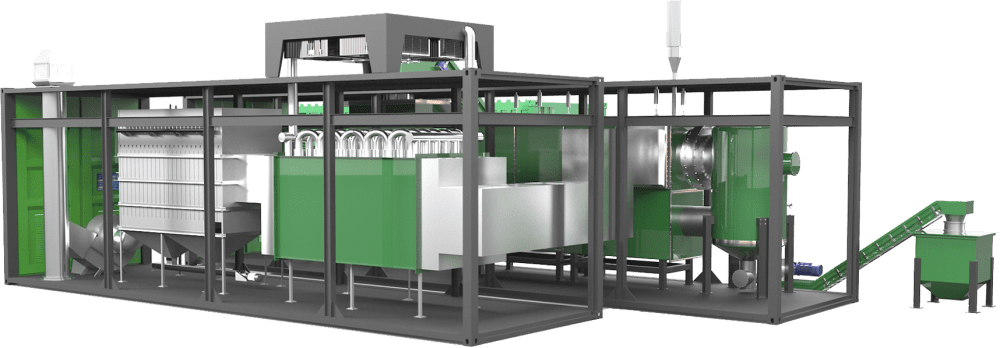

Solution 1
(Waste Heat Utilization System)

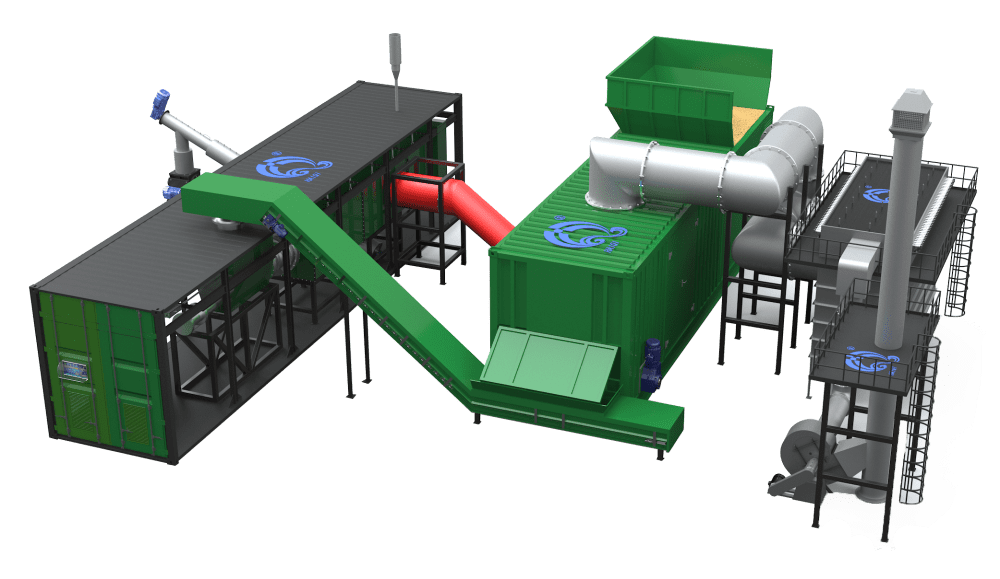

Solution 2
(Waste Heat Drying System)
Solution 3

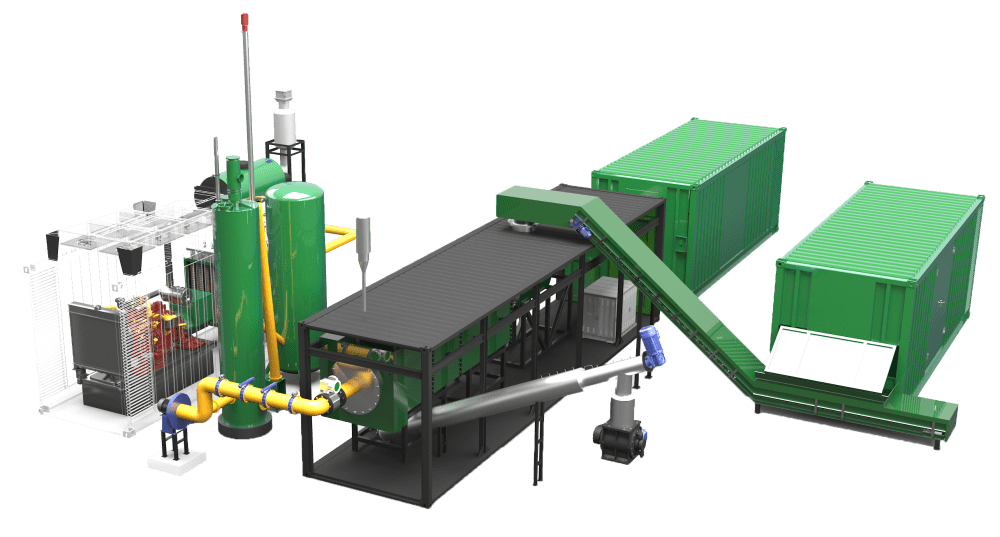

(Pyrolysis Power Generation Waste Heat Recovery System)
Solution 4
(Docking Boiler Waste Heat Recovery System)
Model

HQ-BC300

HQ-BC500

HQ-BC1000

Size

L9000*W2350*H2700,2 piece

L6000*W2350*H2700,1 piece

L12000*W2350*H2700,2 piece

L6000*W2350*H2700,1 piece

L12000*W2350*H2700,3 piece

L9000*W2350*H2700,1 piece

Fuel Performance/H

5000kW

8400Kw

16800kW

Biomass Annual Processing Capacity

9000 tons/year

15000 tons/year

30000 tons/year

Annual Production Of Biochar

2250 tons/year

3750 tons/year

7500 tons/year

Heat Output

1450kW

2400kW

4800kW

Annual Run Time

7500H

7500H

7500H

The lower calorific value of fuel is 3600 kcal/kg

Model

HQ-BC300

HQ-BC500

HQ-BC1000

Size

L9000*W2350*H2700,2 piece

L6000*W2350*H2700,2 piece

L12000*W2350*H2700,2 piece

L6000*W2350*H2700,2 piece

L12000*W2350*H2700,2 piece

L6000*W2350*H2700,3 piece

Fuel Performance/H

5000kW

8400kW

16800kW

Biomass Annual Processing Capacity

9000  tons/year

15000 tons/year

30000 tons/year

Annual Production Of Biochar

2250 tons/year

3750 tons/year

7500 tons/year

Heat Output

1225kW

2040kW

4080kW

Annual Run Time

7500H

7500H

7500H

The lower calorific value of raw materials is 3600 kcal/kg

Model

HQ-BC300

HQ-BC500

HQ-BC1000

Size

L12000*W2350*H2700,2 piece

L9000*W2350*H2700,1 piece

L6000*W2350*H2700,2 piece

500kw Generator cabinet,2 piece

L12000*W2350*H2700,3 piece

L6000*W2350*H2700,2 piece

500kw Generator cabinet,3 piece

L12000*W2350*H2700,5 piece

L6000*W2350*H2700,2 piece

500kw Generator cabinet,6 piece

Fuel Performance/H

5000kW

8400kW

16800kW

Biomass Annual Processing Capacity

9000 tons/year

15000 tons/year

30000 tons/year

Annual Production Of Biochar

2250 tons/year

3750 tons/year

7500 tons/year

Generating Power

800kW

1350kW

2700kW

Heat Output

800kW+800kW

1350kW+1350kW

2700kW+2700kW

Annual Run Time

7500H

7500H

7500H

The whole process requires an external auxiliary heat source

Model

HQ-BC300

HQ-BC500

HQ-BC1000

Size

L12000*W2350*H2700,1 piece

L9000*W2350*H2700,1 piece

L6000*W2350*H2700,1 piece

L12000*W2350*H2700,2piece

L6000*W2350*H2700,1 piece

L12000*W2350*H2700,2 pieceL9000*W2350*H2700,2 piece

Fuel Performance/H

5000kW

 8400kW

16800kW

Biomass Annual Processing Capacity

9000 tons/year

15000 tons/year

30000 tons/year

Annual Production Of Biochar

2250 tons/year

3750 tons/year

7500 tons/year

Heating Boiler Power

700kW

1400kW

2800kW

Heat Output

800kW

1050kW

2100kW

Annual Run Time

7500H

7500H

7500H

System advantages
Compact Structure
The system is compact in structure, and the modular unit is easy to install and transport.
One Person On Duty
It can be operated by only one person, and it can be unattended 24 hours a day.
Longer Life
The overall body is made of stainless steel, which is resistant to corrosion, high temperature, and oxidation, which improves the life of the system, and the service life can reach more than 20 years.
Smart Management
The 5G smart energy management system can monitor the operating conditions of the system in real time, and directly send the fault code to the operation and maintenance personnel in case of system failure.
Modular Design
The modular system saves 90% of the total EPC engineering amount, and can be configured according to the site working conditions to add other supporting auxiliary modules.
Emission Compliance
System modular integration design, system integration modules before leaving the factory, the emission is environmentally friendly and can meet EU2019 emission standards.
Take the HQ-BC1000 model as an example
Biochar has great potential to reduce CO2 levels in the air. Plants bind carbon dioxide in their biomass, but release it again when they decay or burn. Through carbonization, climate-damaging carbon dioxide gas can be permanently bound and removed from the atmosphere—even for thousands of years.
Unit: T Co2
14250
= 493080 Trees
Carbon Storage
Unit: m2
197.4
=20 Cars
Area Covered
Unit: kWh
40500000
= 1620 Families
Provide thermal energy
Benefits of biochar
Nature
Improve soil quality and yield
Stabilize plant growth and
reduce crop death
Avoid rotting or burning
Release carbon dioxide again
01
Climate
CO2 storage
Combat extreme weather
caused by greenhouse gases
Reduce NOx emissions
02
Animal
Feed additives to improve animal health
Reduce methane production in
aquaculture
Improve food safety for mankind
03
Carbon trading
Sustainable development objectives
Contribute to the goal of carbon
neutrality
Increase green income for emission
reduction enterprises
04
Pyrolysis Patented Technology Realizes Carbonization Control
01
Haiqi pyrolysis process achieves precise control of carbonization parameters; thus, carbon products of different quality grades can be produced, ensuring gentle recovery of raw materials such as phosphorus.
02
Organic pollutants such as solvents and microplastics are virtually eliminated, and mineral pollutants are filtered out at temperatures as high as 550-750°C. Highly efficient, climate-friendly and has no harmful by-products.
