Biomass Mobile Energy Station
Check Our Solutions

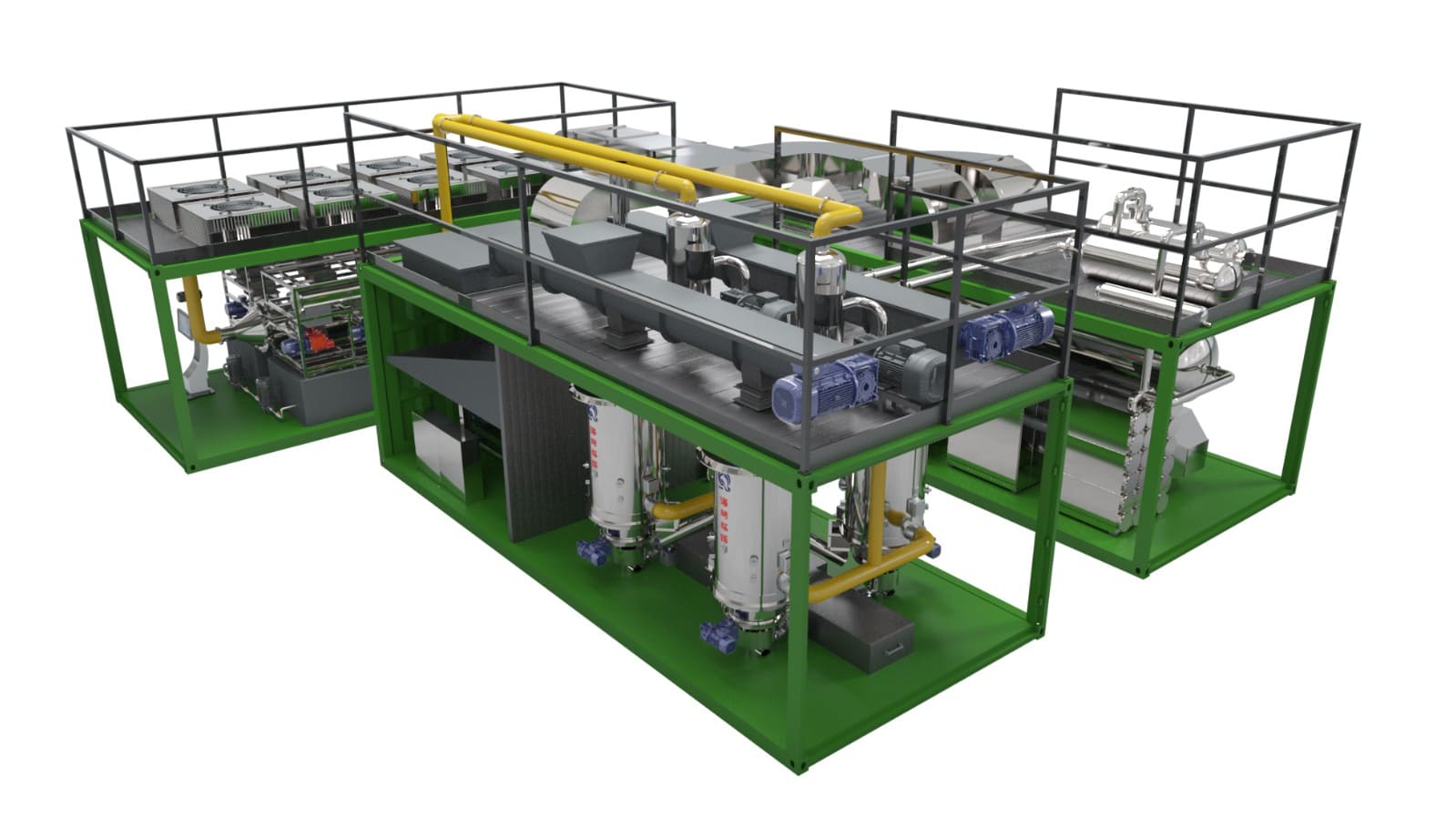

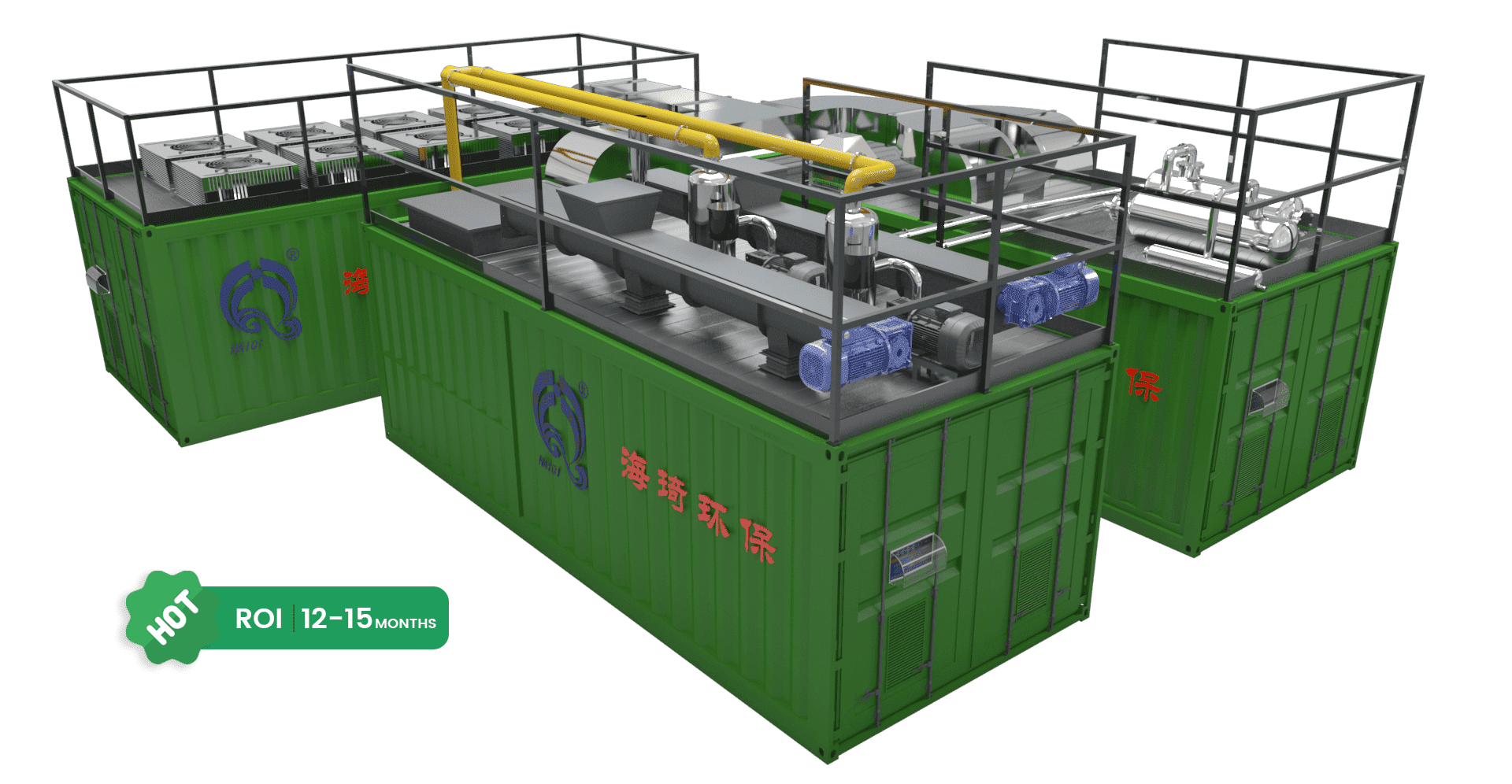

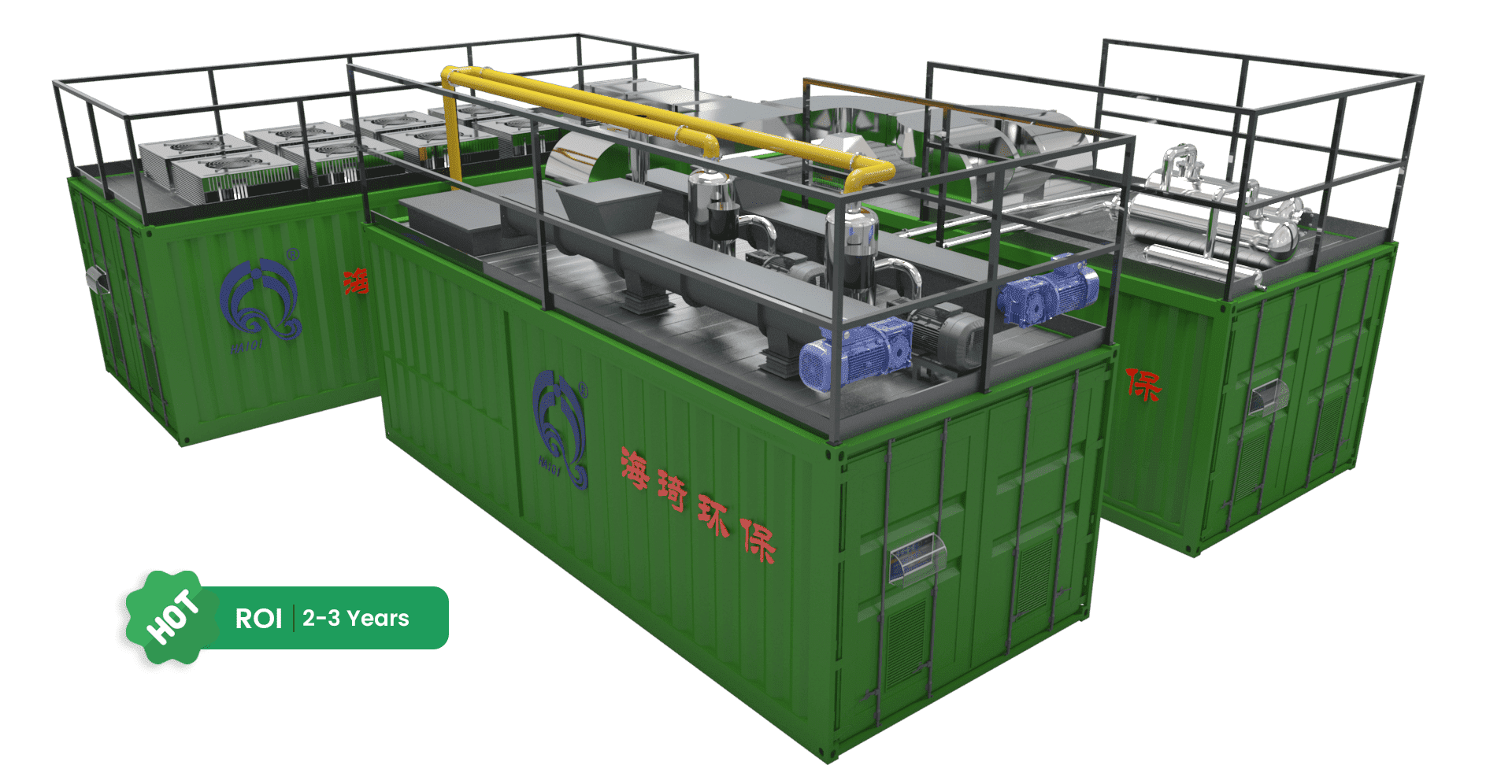

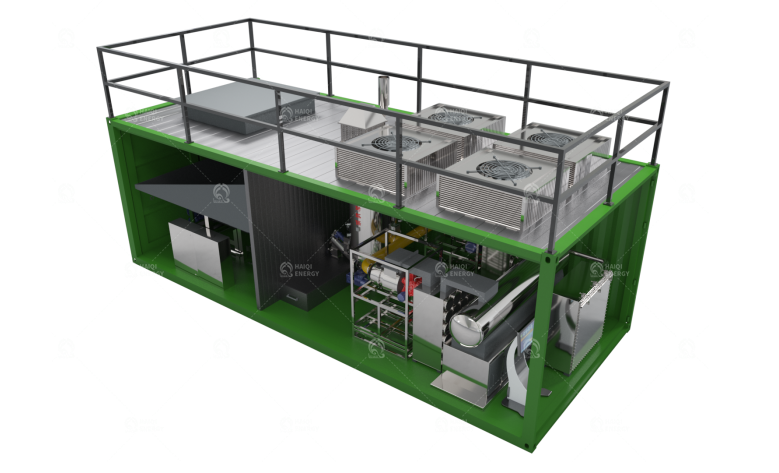

Biomass Mobile Energy Station
Check Our Solutions
Generation System
Biomass Mobile Energy Station System Diagram


01
Biomass Feeding Integrated Machine
02
Biomass Gasification System
03
Stirling Power Generation System
04
Waste Heat Boiler
05
Flue Gas Purification System
06
Biochar


Generation System
Advantages & Features
Haiqi Focus on Alternative Energy Services,Customized solutions for long-term operations and maintenance for projects of all sizes.
Advantanges Of System
1.Modular power plant, the whole plant output, greatly reduce the workload of EPC total project more than 90%, free of foundation, free of installation, easy to maintain.
2.According to the actual needs of users to decide whether to add mobile raw material pretreatment system, mobile seawater desalination system, mobile sewage treatment system, mobile energy storage, mobile intelligent energy management system, etc.
3.Single system provides 24-hour uninterrupted energy for remote areas, and multiple sets in parallel can be applied to large-scale multi-energy complementary cold, heat and power co-generation projects.
4.Mobile energy station plus energy storage system is suitable for uneven and distributed electricity consumption.
5.The system is suitable for raw materials: biomass, branches, nut shells, straw, furniture factory waste, building template, biomass pellets.
Product Application Scenarios
1.Product application scenarios: wind power, photovoltaic, energy storage, multi-combined energy complementary coupling energy services.
2.Island resorts, remote mountainous areas, tourist attractions, humanitarian strategic materials, international refugee camps, forest areas, new energy exchange stations/charging stations, areas with no energy or too high energy costs.
Smart Energy Management System
1.It can realize the dual system control of mobile terminal and PC terminal.
2.The system operation data can be uploaded to the smart energy management cloud in real time for 24 hours, helping users master the first-hand data in real time.
3.The multi-point control module can help users grasp the system working conditions in real time and predict the system failure and maintenance cycle in advance.
Safety Management System
1.The system is made of stainless steel and nickel alloy, which has the advantages of corrosion resistance, oxidation resistance and high temperature resistance.
2.The service life of the system is about 15~20 years.The system operates under micro-negative pressure, and is safe and stable with interlocking control and anti-debursting.
3.Smart valve through multi-point sensing signals to achieve safe and stable operation, for users to escort the use of the site.






Want to Know More?
We know how to get energy from waste. Let’s build better future for everyone, together !
Download Solution Brochure
Parameters
Parameters Of Biomass Mobile Energy Station
Parameters Of Biomass Mobile Energy Station
Specification HQ-SG60 HQ-SG120 HQ-SG240 HQ-SG480
Electrical Output 60KW/H 120KW/H 240KW/H 480KW/H
Net Electrical Output 45kw 100kw 200kw 410kw
Thermal Output 126kw 252Kw 504Kw 1008kw
Biochar 10KG/HR 20KG/HR 40KG/HR 80KG/HR
Biomass Consumption 67KG/HR 134KG/HR 268KG/HR 536KG/HR
Gasifier 1 Updraft Fixed Bed  2 Updraft Fixed Bed  3 Updraft Fixed Bed  6 Updraft Fixed Bed
Engine  (2X) 30KW Stirling Enqine (4X) 30KW
Stirling Enqine
(8X) 30KW
Stirling Enqine
(16X) 30KW
Stirling Enqine
Generator 4 Poles Asynchronous Generator 4 Poles Asynchronous Generator 4 Poles Asynchronous Generator 4 Poles Asynchronous Generator

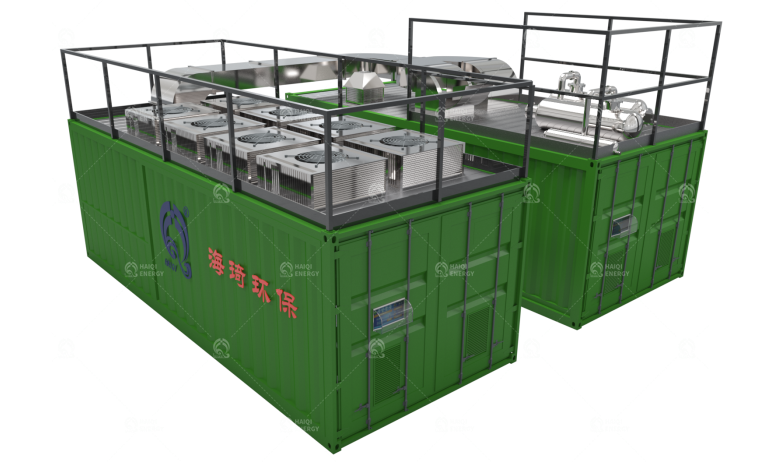

Container Weight 1*40' Weight 5 tons 1*40' Weight 9 tons  2*40 Weight 18 tons 4*40 Weight 36 tons

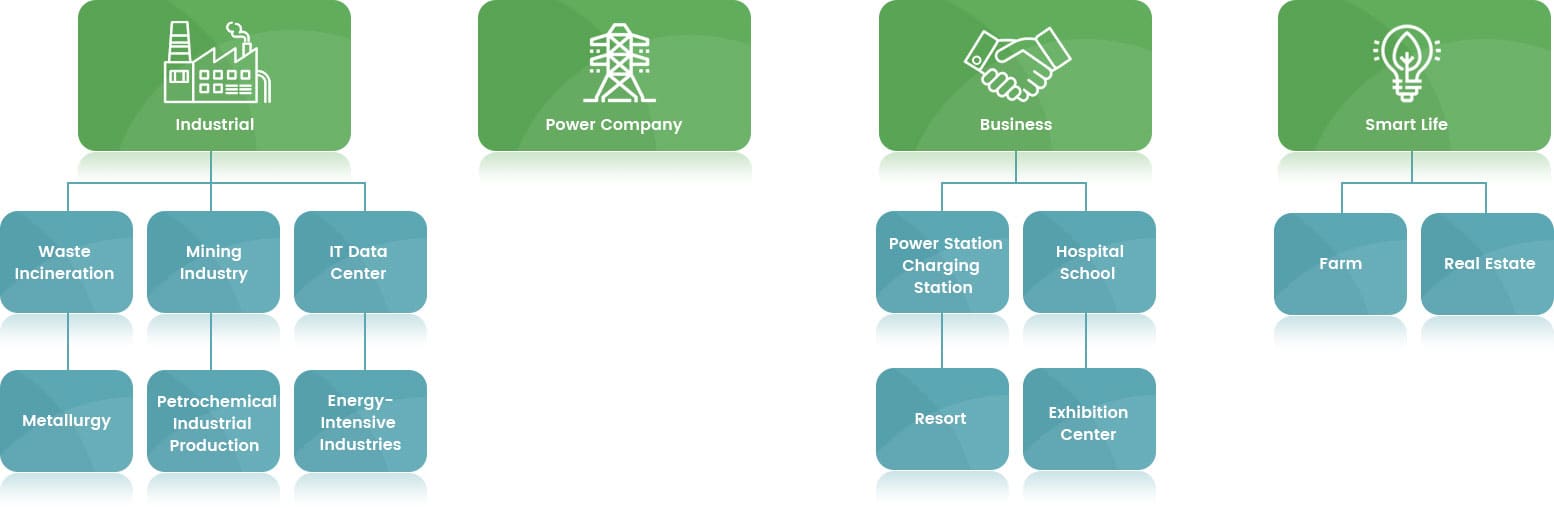

Application
Application field Of
Biomass Mobile Energy Station System
Small modular, clean and environmentally friendly power generation facilities distributed near the load, an economical, efficient and reliable form of power generation.

Solution
Biomass Mobile Energy Station System Solution
The main application objects are regional users with concentrated electricity, heat and cold supplies, such as business centers, schools, hospitals, residential areas, etc. Small and micro distributed energy stations are generally used for users of residents and independent commercial institutions; large-scale distributed energy stations generally implement heat, electricity, and cold triple production to solve the supply of electricity, heat, and cold for regional users.

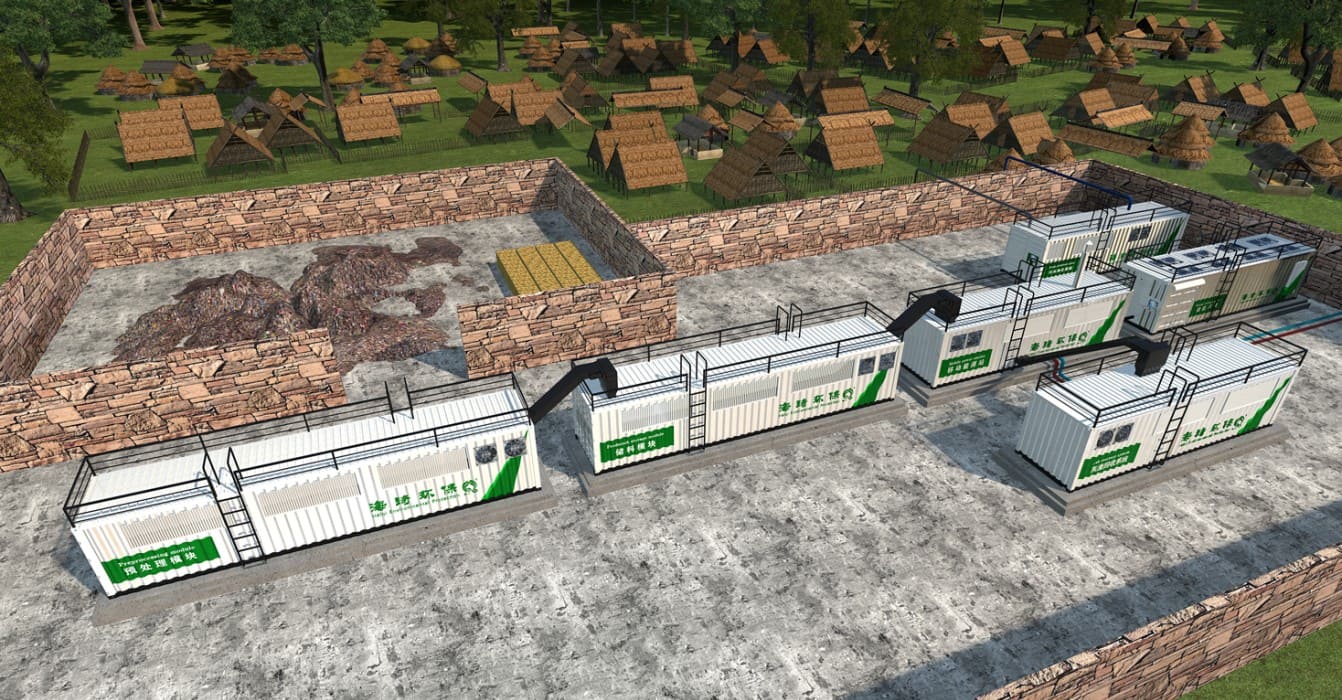

Africa Poverty-Stricken Areas Solution
+
Community lsland Solution
+

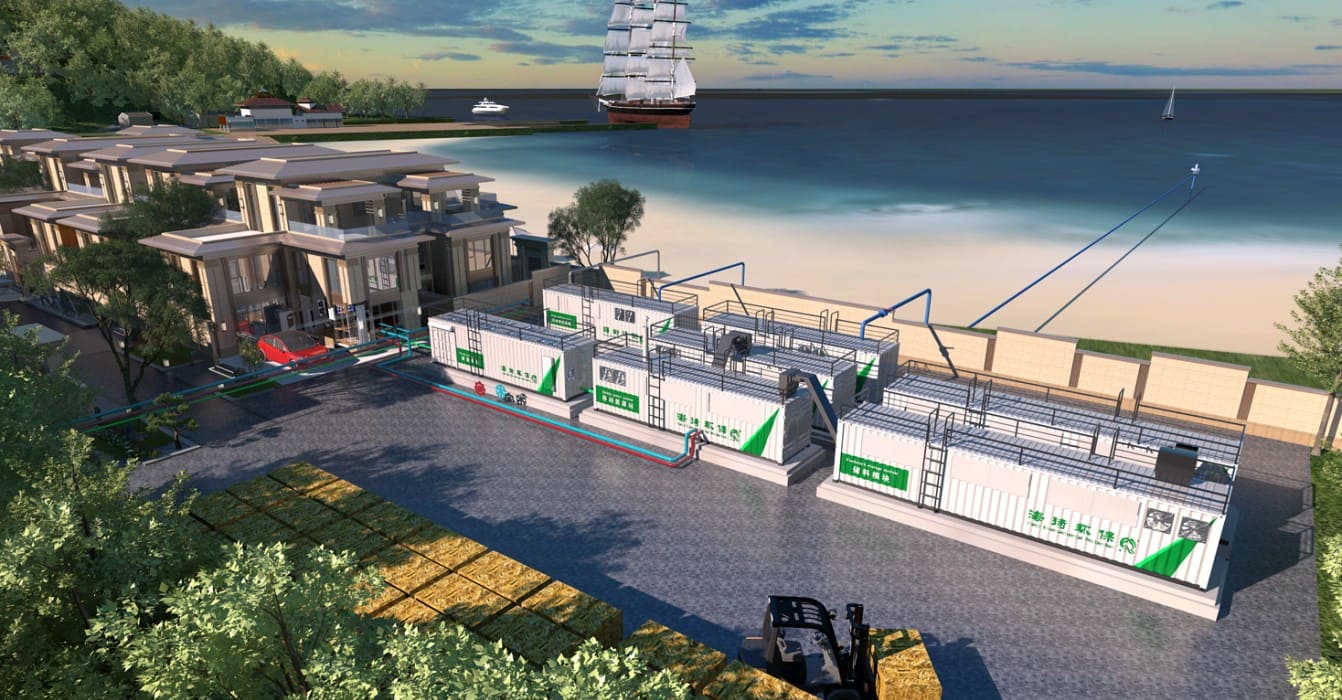

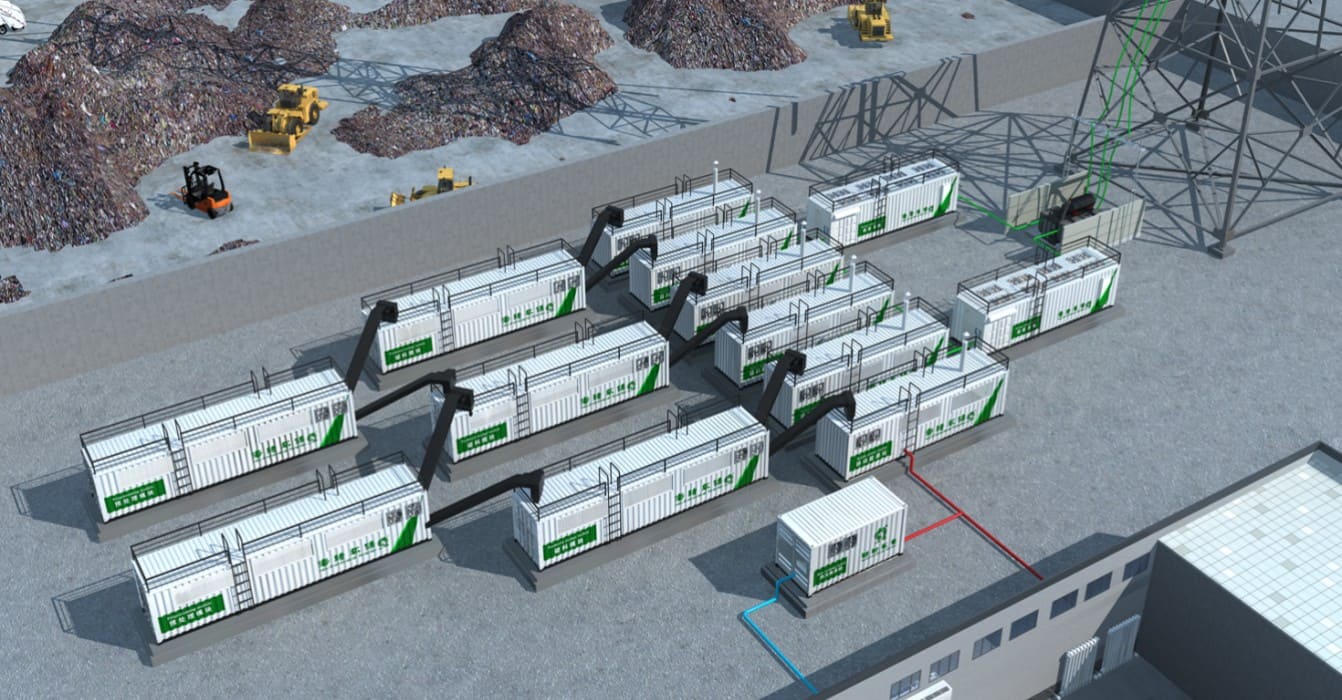

Island Community Solution
+

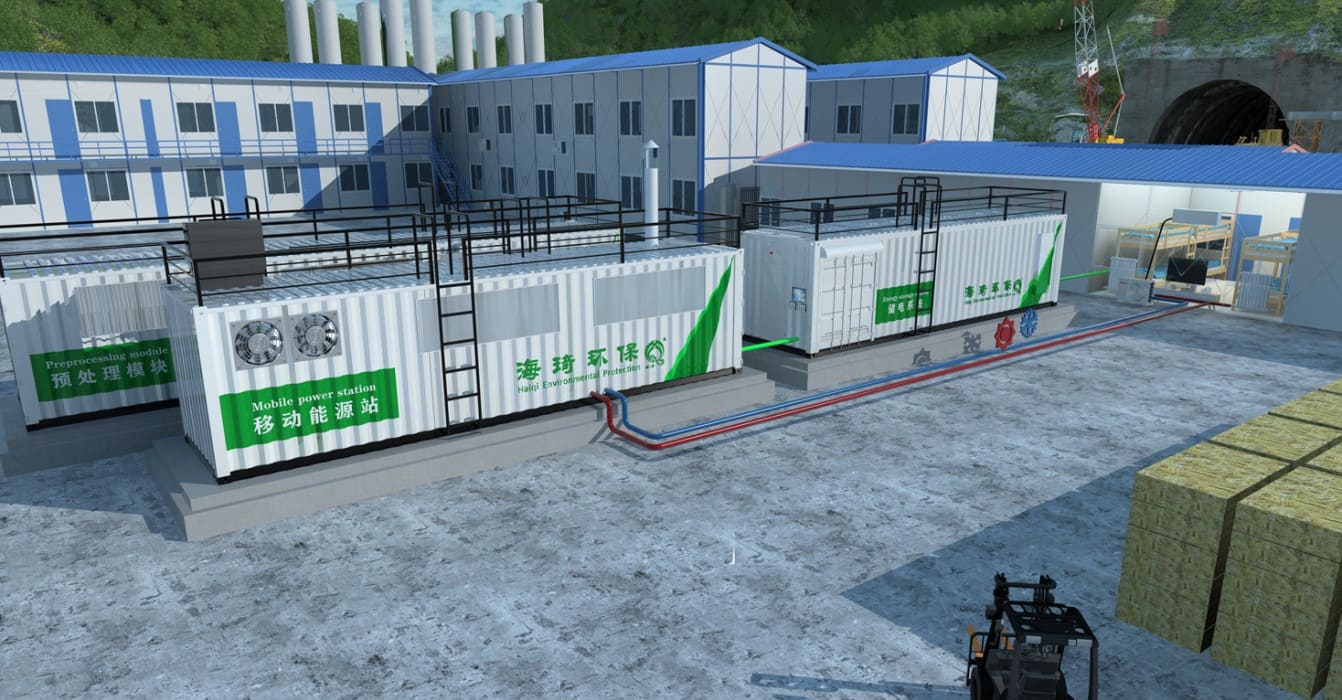

Outdoor Solution
+

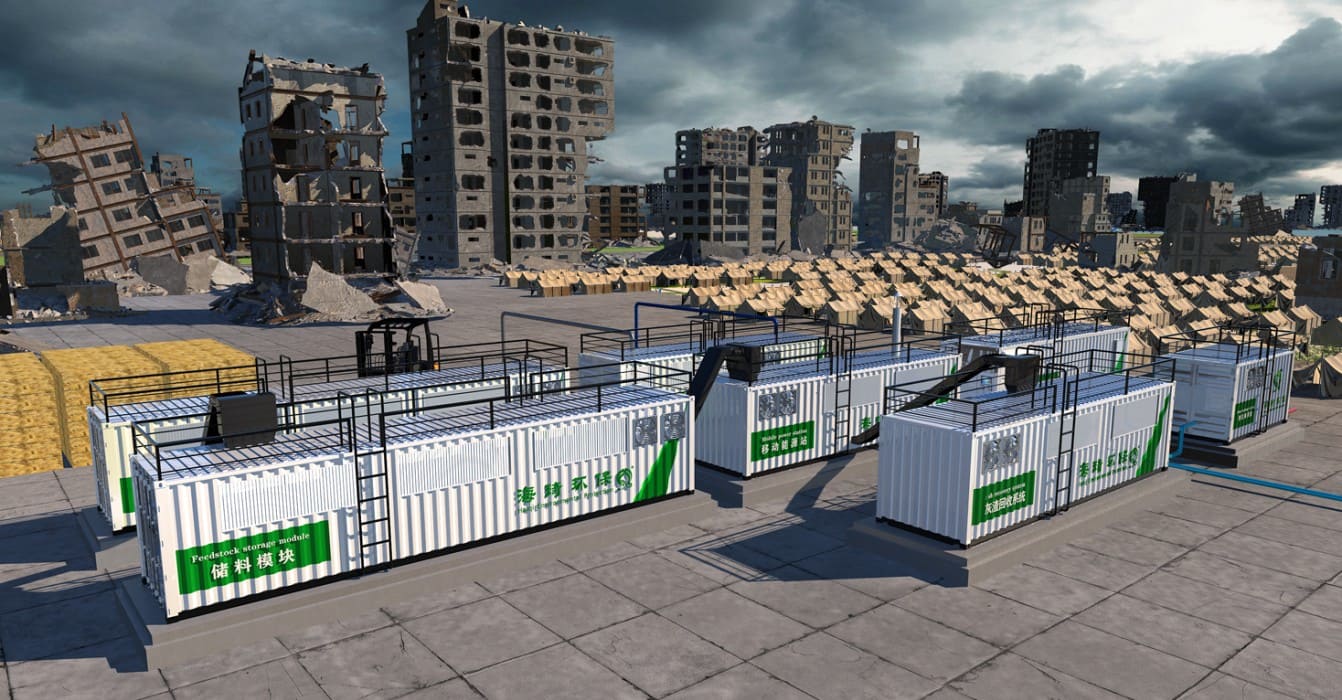

Refugee Camp Solution
+

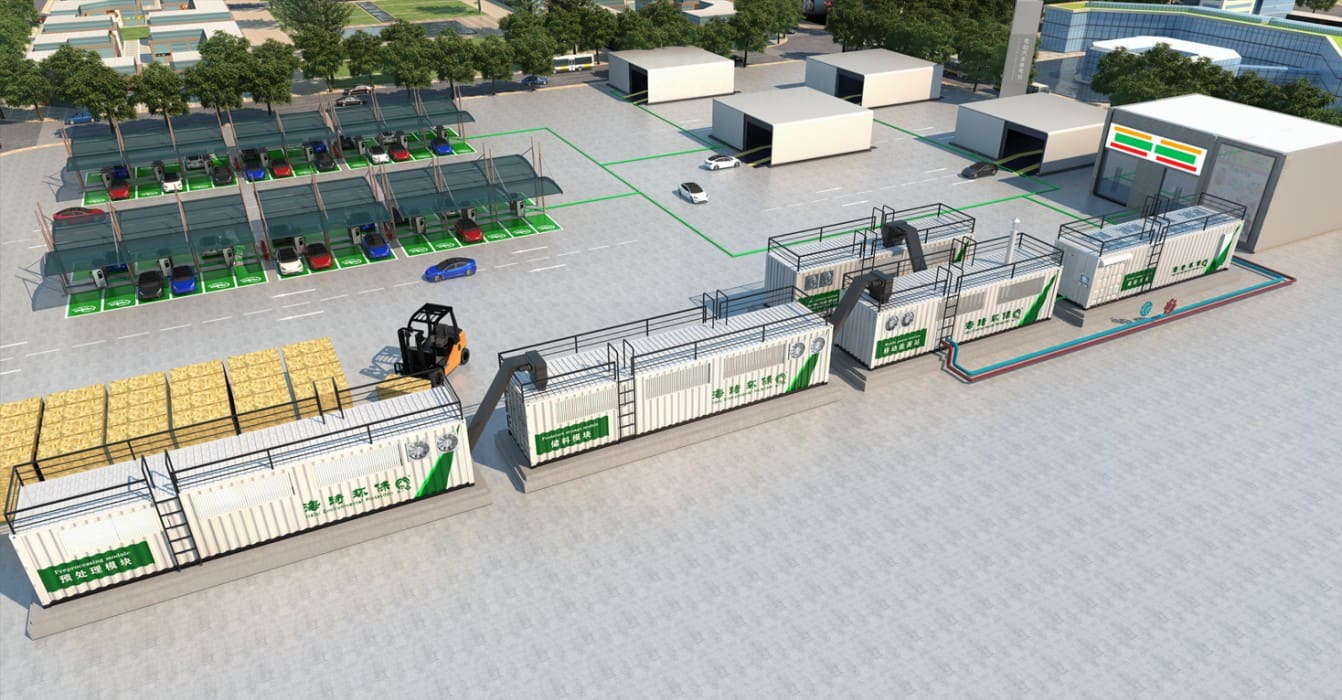

New Energy Swap Station Solution
+

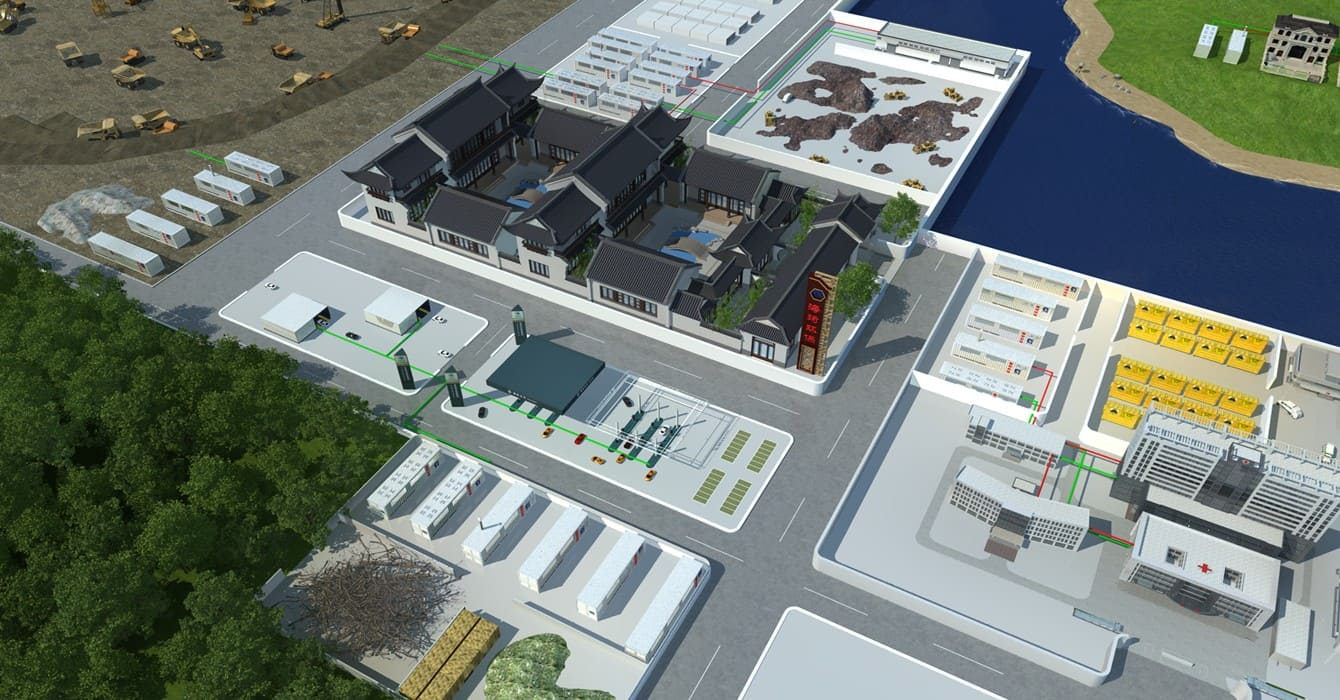

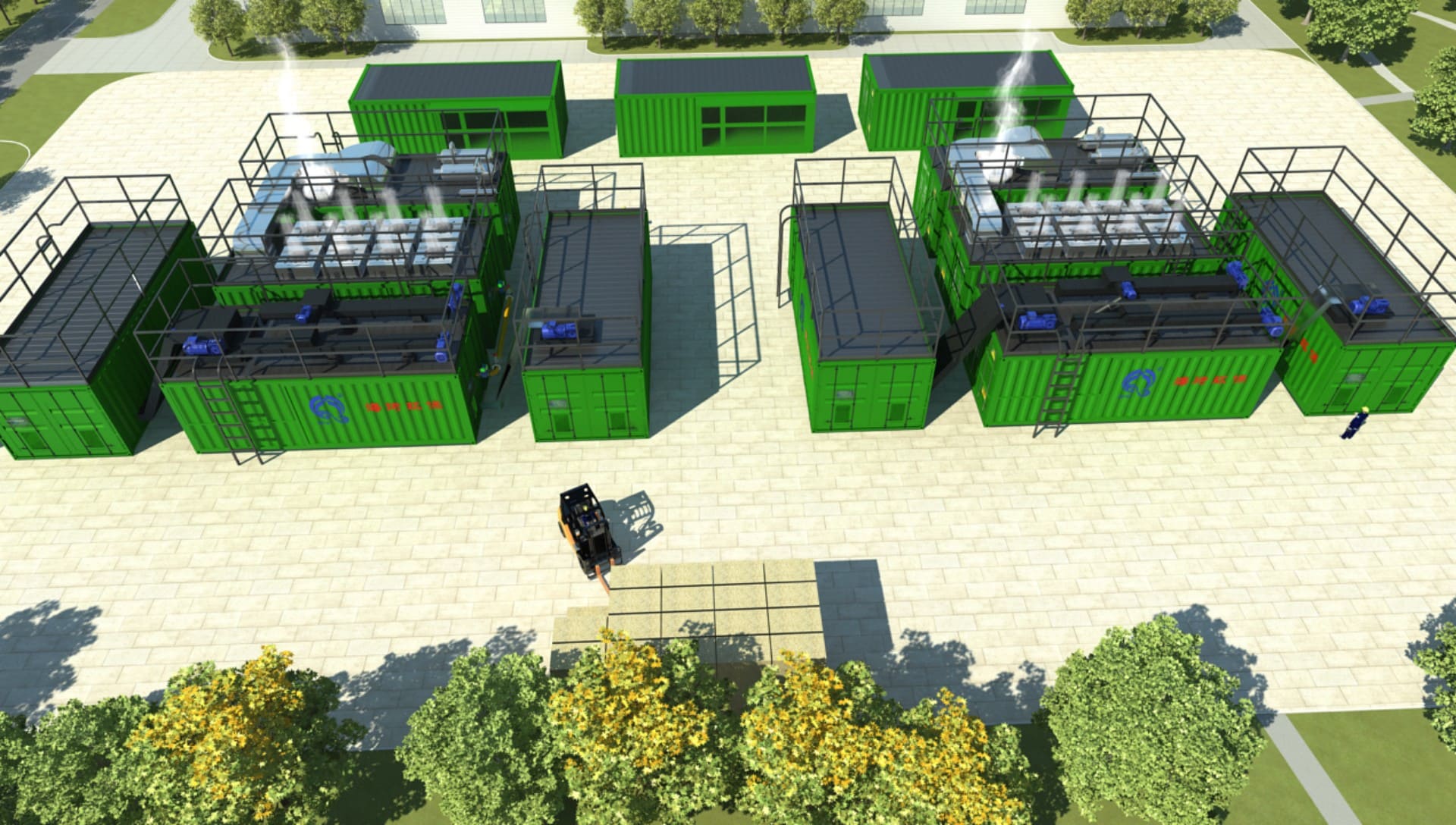

Ecological Application Scenarios
+

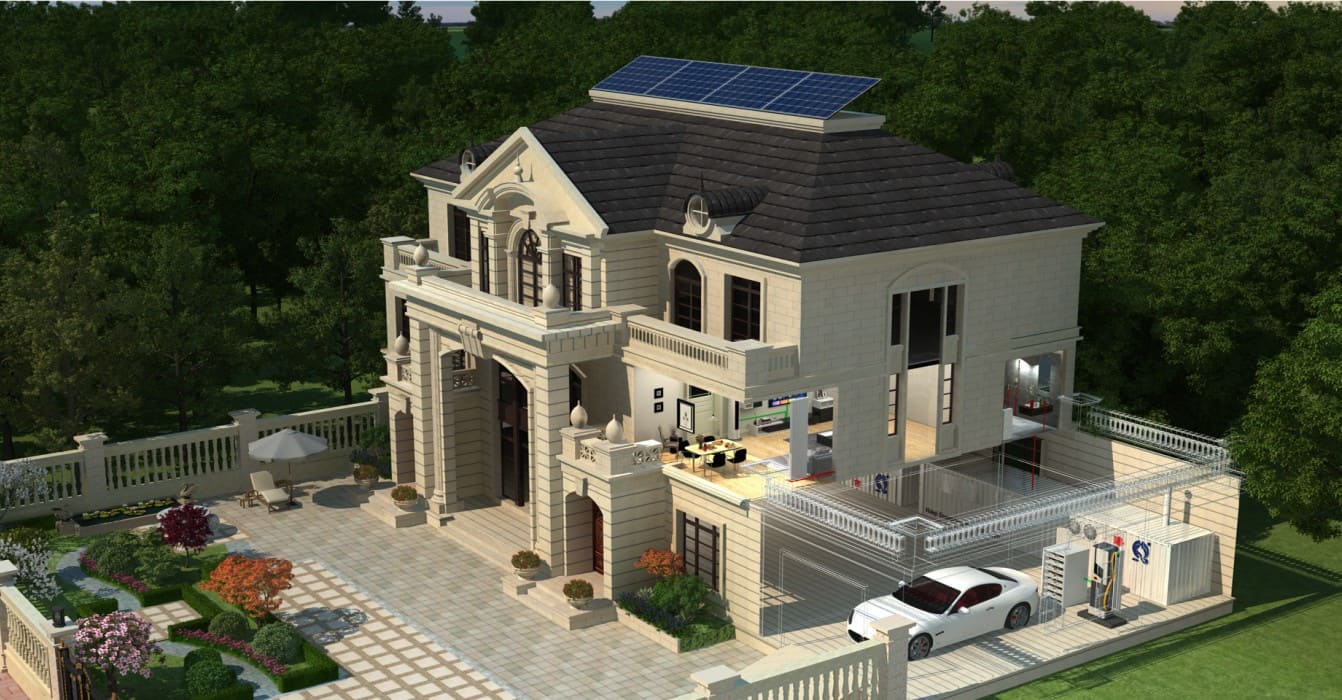

Home Application Scenarios
+
Source material
Biomass Raw
Material Types
Our advanced gasification technology has been extensively tested on nearly 78 types of gases.
Nut Shell
Rice Husk
Wood Chip
Coffee Bean Shell
Biomass Pellets
Chinese Medicine Dregs
Coconut Shell
Peanut Shell
Mahogany Pellets
Biomass Briquettes
Nut Shell
Rice Husk
Wood Chip
Coffee Bean Shell
Biomass Pellets
Chinese Medicine Dregs
Coconut Shell
Peanut Shell
Mahogany Pellets
Biomass Briquettes
