Biomass pyrolysis power generation in microgrids--EUBC series

Smart Energy Negative Carbon Cycle Microgrid Why Are We Unique?

Super high efficiency outperforming traditional solutions

Fuel cost nearly zero (converted waste straw/wood chips into energy)
Continuous power supply24/7(Not affected by cloudy days or calm winds,ensuring the stability of micro-grid)

Stable raw materials safe and reliable

Biomass raw materials can be stored for an extremely long time
No need for complex temperature control No power outage in extreme weather

Negative carbon emissions compliant with carbon monetization

Each ton of biomass carbon sequesters 2 tons of CO2
Blockchain-based carbon sink tracking(automatically generatingtradable carbon certificates)

Choose Haiqi and Embark on the Intelligent Negative Carbon Era of Micro-Grid.

Not only selling equipment,but also selling"energy solutions"

Free provision of"White Paper on Carbon-Electricity-HeatSynergistic Supply Planning for Micro-Grids"

Stable operation underextreme conditions with international certification endorsements: CE,lSO certifications.

Al Intelligent Energy Brain

Fault self-diagnosis:

Fault prediction accuracy rate>90%, reducing downtime losses.

Raw material Al quality inspection:

Unmanned aerial vehicle scans the moisture content of straw,and the maldecom position efficiencyis increased by 15%.

Carbon Asset Management:

Automatically Connect to Global Carbon Exchanges, Real-time Visibilityof Earnings.

Multi-functional complementaryoptimization:

Dynamically adjust the power supply ratio ofbiomass, photovoltaic and energy storage, and reduce the rate of power loss.

System Diagram

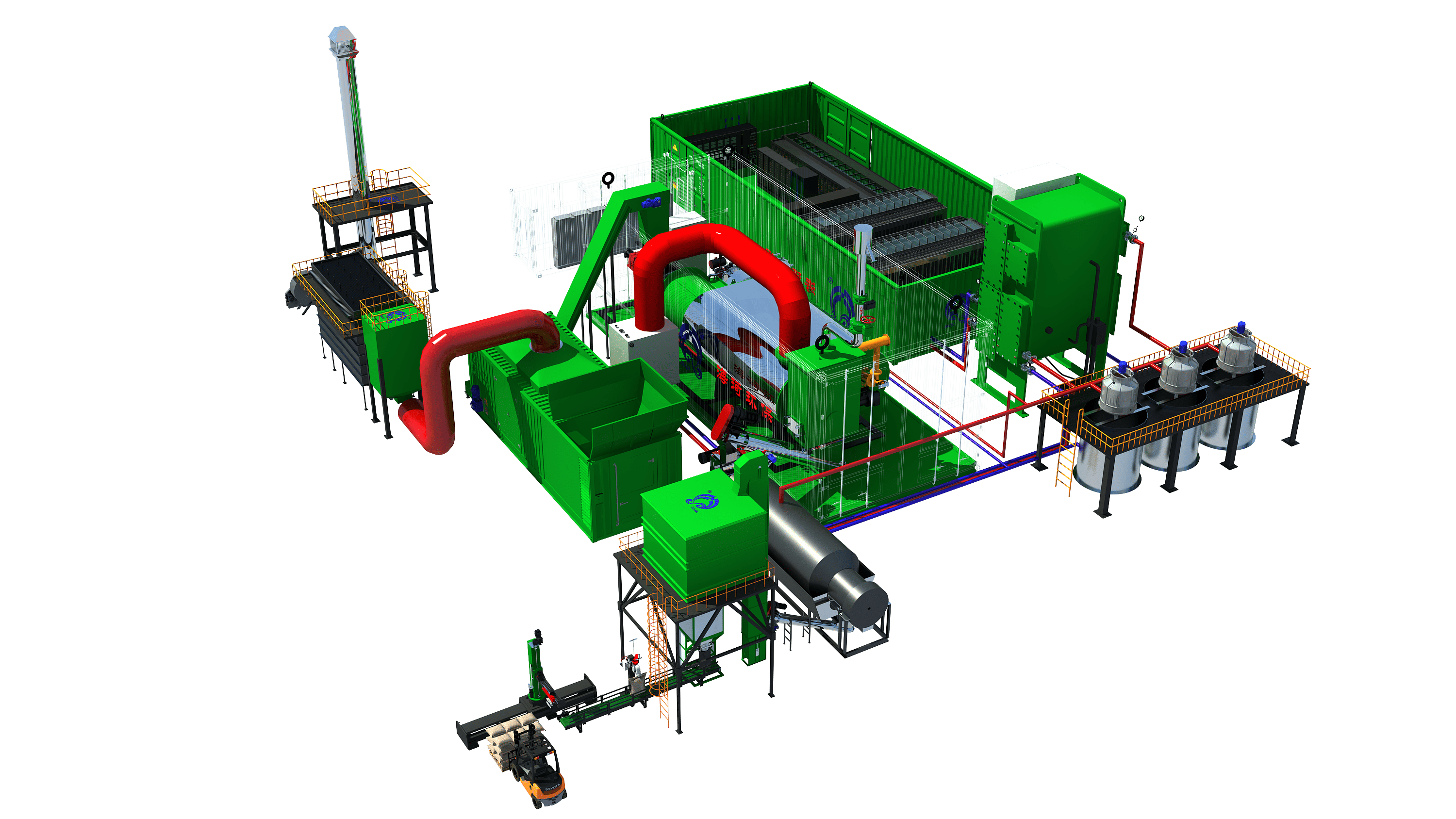

Biomass Pyrolysis Power Plant in Data Center-EUBC

1. Data center

2. Lithium bromidere frigeration equipment

3. Cooling tower

4. Pyrolysis system

5. Biochar cooling machine

6. Biochar automatic packaging system

7. Power distribution cabinet

8. Multi-cyclone ceramic dust collector

9. Bag filter

10. Chimney

11. Economizer

Data center

Lithium bromidere frigeration equipment

Cooling tower

Pyrolysis system

Biochar cooling machine

Biochar automatic packaging system

Power distribution cabinet

Multi-cyclone ceramic dust collector

Bag filter

Chimney

Economizer

Want to Know More? Click Here!

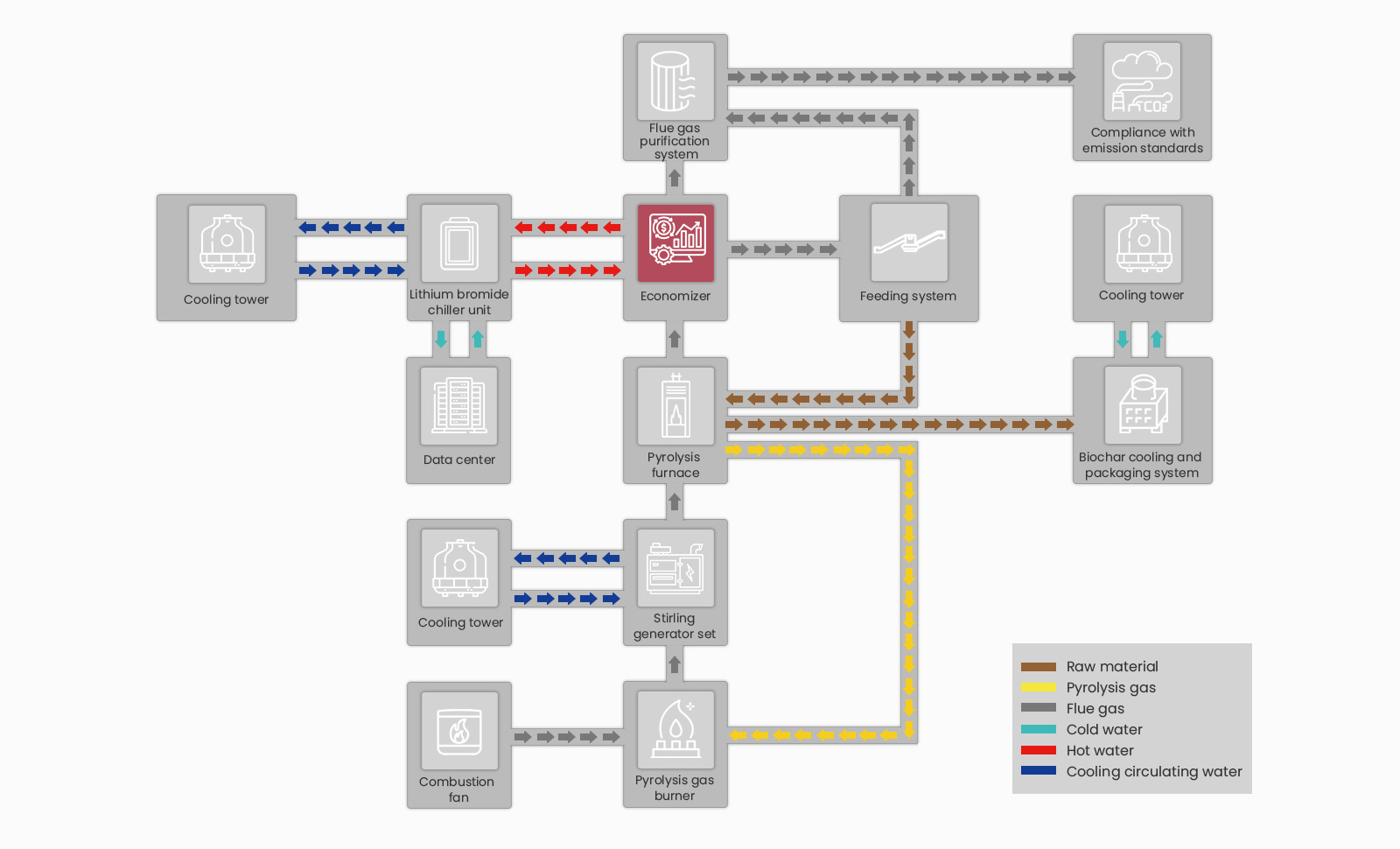

Schematic Diagram of The Operation Principle of EUBC Pyrolysis Power Generation

EUBC Pyrolysis Device Interface Data Center Parameter Table

EUBC Biomass Pyrolysis Plant for Data Center Parameters
Item	30kW system	60kW system	120kW system
Power generation (kW)	30	60	120
Cooling capacity (kW)	115	230	460
System power supply (kw)	21	28.5	35.5
Heat utilization efficiency (%)	87.6%
Raw material particle size	2~3cm, with fluidity
Raw material moisture content	≤15%
Raw material calorific value (kcal/kg)	3900
Raw material consumption (kg/h)	100	200	400
Biochar production (kg/h)	25	50	100
Pyrolysis furnace model	EUBC-25	EUBC-50	EUBC-100
Number of pyrolysis furnaces (units)	1	1	1
Stirling generator model	PCU30	PCU30	PCU30
Number of Stirling generator (units)	1	2	4
Number of lithium bromide units (units)	1	1	1
PUE	1.16
LCOE	0.4
Floor area (m²)	25*15	50*15	50*30
Number of containers	140' frame cabinet; 320' high cabinets	140' frame cabinet; 340' high cabinets	140' frame cabinet; 440' high cabinets

Reshaping The Energy Future of Villages Parks And lslands

Scene 1 Remote Areas

Scene 2 Industrial Park

Scene 3 Island

Off-Grid Power Supplyin Remote Areas - From "Having Electricity" to "Using Good Electricity"

Intelligent breakthrough:

Al-based raw material scheduling: satelite monitoning of the harvest period of farmland, automatically triggerning instructions forstraw acquisition.

Emergency mode: Before typhoon or heavy rain, automatically stockpile biochar to reduce the risk ofpower outage by 90%.

Customer Value:

The electricity price is 30% lower than that of diesel power generation, which means the villagers' electricity cost has dropped significantly.

Biochar enriches agriculture and boosts per-acre yield.

Carbon Negative Energy Supply: Waste Becomes Gold;

Intelligent Industrial closed-loop:

Waste Heat Recovery System: Utilizing residual heat from pyrolysis to supply production lines, reducing steam costs.

Carbon Tax Optimizer: Automatically calculating, emission reduction amounts and generating compliance reports.

Customer Value:

100% utilization of palm shell and rice husk waste materials, with zero processing cost.

Grid connection of surplus electricity+ carbon sink sales, increasing annual profit and revenue.

Microgrid-Saying Goodbye to Diesel Dependence.

Intelligent Coordinated Control:

Wind, solar and Biomass Co-control: Al predicts the power generation for the next three days and automatically switches to the optimal energy combination.

Seawater Desalination Linkage: Start freshwater production during the low electricity consumption period to maximize resource utilization.

Customer Value:

Through multi-energy complementarity such as wind and solar power, energy costs can be significantly reduced.

Optimize energy usage: Al predicts power generation, and automatically switches to the optimal energy combination to maximize the utilization of low-cost renewable energy.

Get Free Solution

We provide medium and long-term solutions to the problems of biomass waste, transforming waste into energy at no environmental cost and making it economically viable and at the same time compatible with the international environmental regulations and standards
